产品列表

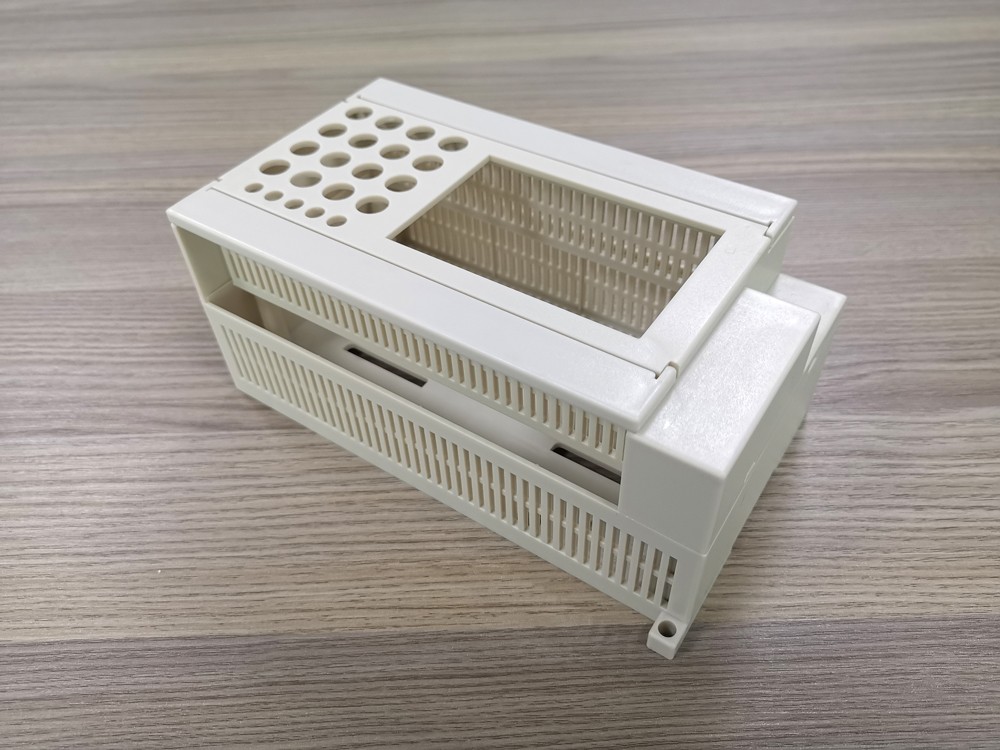

·Widely used in various PLC module circuits, controller units, power distribution modules·Fast and simple installation on the guide rail·Pre installed mounting clip (POM injection molding)·Two ways of installation (screw fixation, rail fixation)·Both sides can be equipped with: 30 single side screw terminals with a spacing of 5.0, 60 positions in totalSingle side 20 positions of fence type terminal with spacing of 7.62, 40 positions in total·Colors and materials can be customized in batches·Product model: 3-01E·Product size: 179 * 100 * 77mm
Plastic transparent waterproof box★ protection grade: IP65★ product material: bottom shell ABS / cover as★ product model: 2-155★ external dimension: 263 * 185 * 95mm★ average wall thickness of the box is about 3mm★ product standard configuration: upper cover * 1, bottom shell * 1, silicone rubber sealing strip * 1, fixed screw * 6,★ optional plastic hanging feet or metal fixing pieces can also be directly fixed on the wall through the installation hole at the bottom of the box body★ the standard waterproof box does not have holes. It can process and re open the mold according to the customer's needs★ this product is applicable to junction box, instrument box, electronic product shell, etc
Product Description: suitable for optical mechanical station, AP bridge amplifier, signal intensifier, etc·Product model: A-03B-A·Internal dimension of product: 1600 * 110 * 60MM·Dustproof and waterproof design·Product material: adc-12·Product surface treatment: silver grey smooth surface, pattern paint, spray molding, etc·There are 6 5 / 8-24 holes on both sides of the product
Plastic waterproof box★ protection grade: IP65★ product material: ABS★ product model: 2-49★ external dimension: 192 * 100 * 62mm★ average wall thickness of the box is about 2.5mm★ product standard configuration: upper cover * 1, bottom shell * 1, silicone rubber sealing strip * 1, fixed screw * 6,★ the mounting ear at the bottom of the box body can be directly fixed on the wall,★ the standard waterproof box does not have holes. It can process and re open the mold according to the customer's needs★ this product is applicable to junction box, instrument box, electronic product shell, etc
Plastic waterproof box★ protection grade: IP65★ product material: ABS★ product model: 2-24★ external dimension: 263 * 185 * 70mm★ average wall thickness of the box is about 2.5mm★ product standard configuration: upper cover * 1, bottom shell * 1, silicone rubber sealing strip * 1, fixed screw * 6,★ optional plastic hanging feet or metal fixing pieces can also be directly fixed on the wall through the installation hole at the lower part of the box body★ the standard waterproof box does not have holes. It can process and re open the mold according to the customer's needs★ this product is applicable to junction box, instrument box, power box, electronic product shell, etc
Product Name: aluminum profile shellProduct model: AD-16External dimension: 26 * 54 * 100mm
★ product material: ABS★ product model: 5-119★ external dimension: 210 * 139 * 50mm★ average wall thickness of the box is about 2mm★ product standard: upper cover * 1, bottom shell * 1, baffle * 1★ the products can be processed and re opened according to the customer's needs
Plastic wiring shell, instrument box★ protection grade: IP54★ product material: ABS★ product model: 8-18★ overall dimension: 270 × 210 × 72mm★ the average wall thickness of the box is about 1.5-2mm★ product standard: upper cover * 1, bottom shell * 1★ the standard shell does not have holes, and can be processed and re opened according to the customer's needs
Model: 3-21-1Size: 88 * 72 * 59mmProduct standard: upper cover, base, red circlipThe distance between the two sides of the product is 5.08, and the single side of plug-in terminal is 12 bits, 24 bits in totalThis product is applicable to power module box, collector, transmitter, isolation transmitter, signal changer and other boxes, which are connected by hook, installed without tools, fixed by standard 35 guide rail quickly and simply, the product color and material can be customized in batch, and the product cover batch can be modified as required.
Product model: 3-01F Product size: 179 * 100 * 48mmexplain:The second side of the product can be equipped with 7.62 terminal blocks, 20 cores on one side (40 cores on two sides)The second side of the product can be equipped with 5.0 terminal blocks, 30 cores on one side (60 cores on both sides)
Plastic transparent waterproof box★ protection grade: IP65★ product material: bottom shell ABS / cover as★ product model: 2-155-1★ external dimension: 263 * 185 * 60MM★ average wall thickness of the box is about 3mm★ product standard configuration: upper cover * 1, bottom shell * 1, silicone rubber sealing strip * 1, fixed screw * 6,★ optional plastic hanging feet or metal fixing pieces can also be directly fixed on the wall through the installation hole at the bottom of the box body★ the standard waterproof box does not have holes. It can process and re open the mold according to the customer's needs★ this product is applicable to junction box, instrument box, electronic product shell, etc
Product Description: suitable for optical mechanical station, AP bridge amplifier, signal intensifier, etc·Product model: A-03B-B·Internal dimension of product: 160 * 110 * 60MM·Dustproof and waterproof design·Product material: Aluminum·Product surface treatment: silver grey smooth surface, pattern paint, spray molding, etc·There are 5 M12 * 1 faces on both sides of the product
