★ product model: 4-08-4★ external dimension: 168 * 80 * 30MM★ window size: 55 * 45mm★ average wall thickness of the box is about 2mm★ product standard configuration: as shown in the figure★ according to the customer's needs, the hole can be opened for processing
Thermostat, remote control switch housing★ product material: ABS★ product model: 5-81★ external dimension: 86 * 86 * 38mm★ window size: 48 * 65mm★ average wall thickness of the box is about 2mm★ product standard: upper cover * 1, bottom shell * 1, tail shell, key cap★ the product batch can be customized according to the customer's needs, such as color, opening processing and re opening mold
Product Name: 190-7 type caseProduct dimensions: 98 * 180 * 205 [h * w * D]Product Description: plastic enclosure with 2mm aluminum front and rear drawing panel
Plastic wiring shell, instrument box★ protection grade: IP54★ product material: ABS★ product model: 8-13★ external dimension: 260 × 182 × 65mm★ the average wall thickness of the box is about 1.5-2mm★ product standard: upper cover * 1, bottom shell * 1★ the standard shell does not have holes, and can be processed and re opened according to the customer's needs

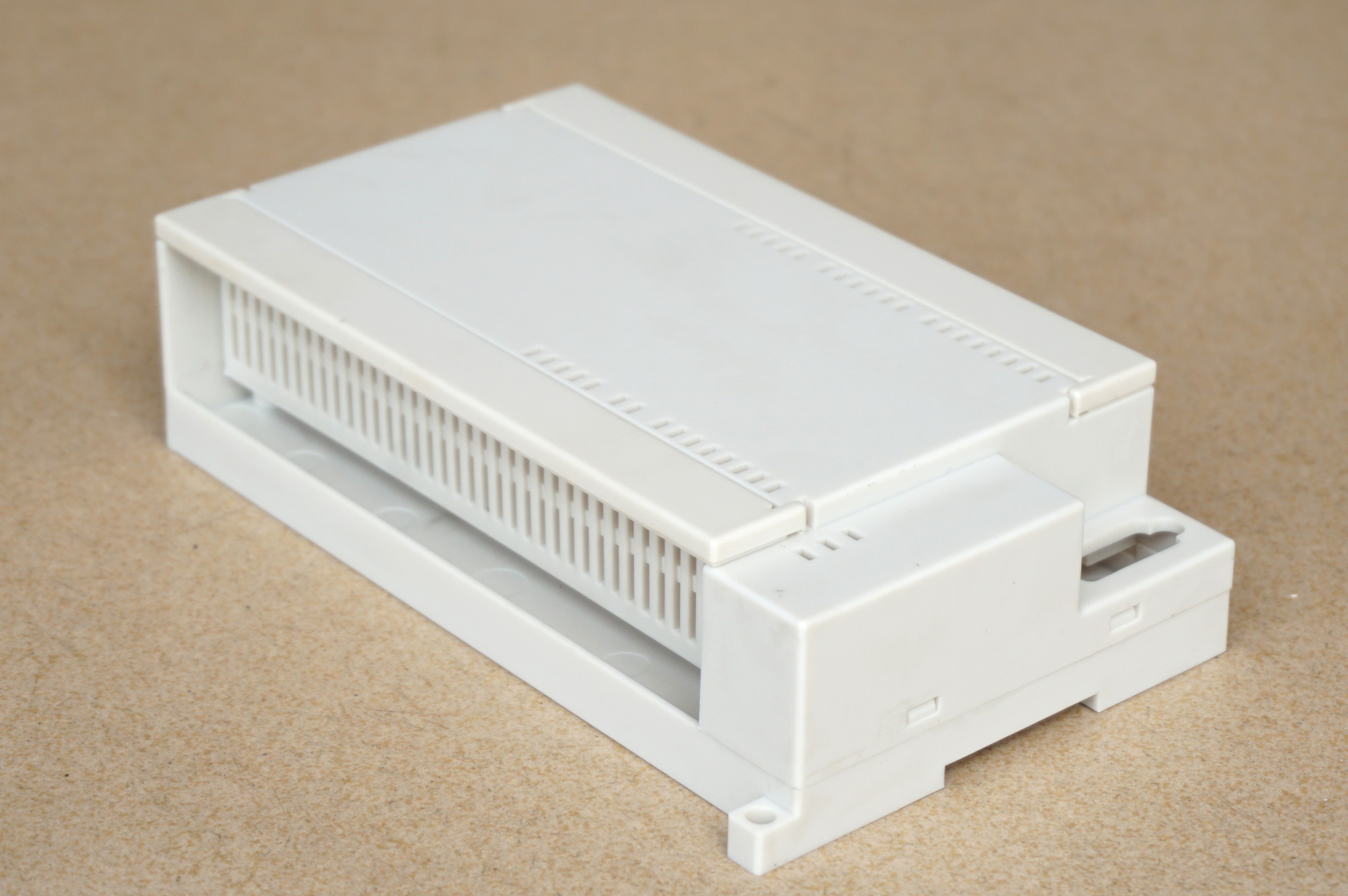

·Widely used in various PLC module circuits, controller units, power distribution modules·Fast and simple installation on the guide rail·Pre installed mounting clip (POM injection molding)·Two ways of installation (screw fixation, rail fixation)·Both sides can be equipped with: 30 single side screw terminals with a spacing of 5.0, 60 positions in totalSingle side 20 positions of fence type terminal with spacing of 7.62, 40 positions in total·Colors and materials can be customized in batches·Product model: 3-01B·Product size: 179 * 100 * 48mm
Plastic transparent waterproof box★ protection grade: IP65★ product material: bottom shell ABS / cover as★ product model: 2-153-1★ overall dimension: 100 × 68 × 40mm★ average wall thickness of the box is about 2.5mm★ product standard configuration: upper cover * 1, bottom shell * 1, silicone rubber sealing strip * 1, set screws * 4,★ the standard waterproof box does not have holes. It can process and re open the mold according to the customer's needs★ this product is applicable to junction box, instrument box, electronic product shell, etc
Plastic waterproof box★ protection grade: IP65★ product material: ABS★ product model: 6-09★ external dimension: 345 * 266 * 165mm★ internal dimension: 312 * 207 * 147mm★ average wall thickness of the box is about 2.5mm★ the standard waterproof box does not have holes, which can be processed and re opened according to the needs of customers,★ this product is applicable to toolbox, junction box, instrument box, electronic product shell, etc
Plastic waterproof box★ protection grade: IP65★ product material: ABS★ product model: 2-17-3★ external dimension: 230 * 150 * 87mm★ average wall thickness of the box is about 2.5mm★ product standard configuration: upper cover * 1, bottom shell * 1, silicone rubber sealing strip * 1, set screws * 4,★ the mounting ear at the bottom of the box body can be directly fixed on the wall,★ the standard waterproof box does not have holes, which can be processed and re opened according to the needs of customers,★ this product is applicable to junction box, instrument box, electronic product shell, etc

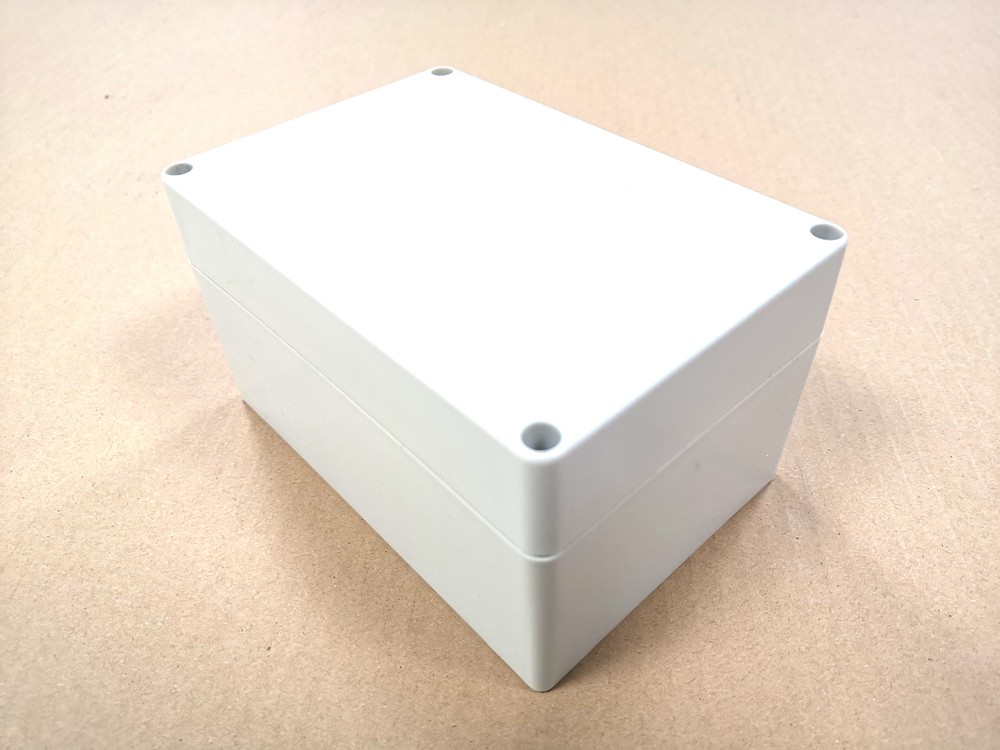

Plastic waterproof box★ protection grade: IP65★ product material: ABS★ product model: 2-18★ external dimension: 160 * 110 * 90mm★ average wall thickness of the box is about 2.5mm★ product standard configuration: upper cover * 1, bottom shell * 1, silicone rubber sealing strip * 1, set screws * 4,★ optional plastic hanging feet or metal fixing pieces can also be directly fixed on the wall through the installation hole at the lower part of the box body★ the standard waterproof box does not have holes. It can process and re open the mold according to the customer's needs★ this product is applicable to junction box, instrument box, electronic product shell, etc
Product Name: aluminum profile shellProduct model: AD-12External dimension: 27 * 76 * 100mm
Text box, digital display shell★ product material: ABS★ product model: 5-122-1★ overall dimension: 164 * 102 * 50mm★ window size: 106 * 39mm★ the average wall thickness of the box is about 2.5mm★ product standard: upper cover * 1, bottom shell * 1, fixing bracket screws * 2,★ the products can be processed and re opened according to the customer's needs
★ product model: 4-08-5★ external dimension: 168 * 80 * 30MM★ window size: 55 * 45mm★ average wall thickness of the box is about 2mm★ product standard configuration: as shown in the figure
